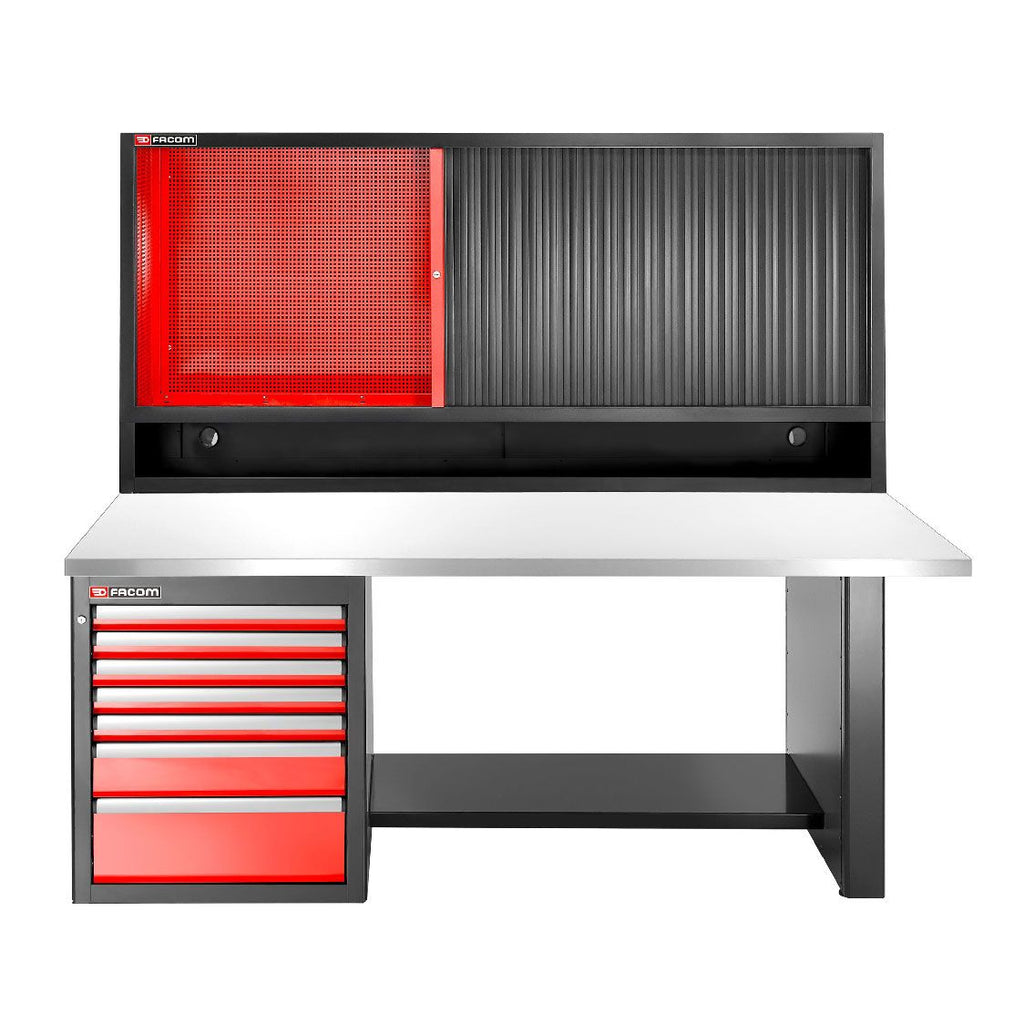

Description
7 Drawer unit
5 Drawers - 60mm high - 15 modules
1 Drawer - 130mm high - 3 modules
1 Drawer - 270mm high - 3 modules
Drawer useful size - 569x421x60/130/270mm
Supplied with 6 partitions for drawers 60mm high and 2 partitions for drawers 130mm high
Centralised locking, jointed key lock
Interchangeable lock
Fitted with 4 pivoting jacks for a perfect finishing
Leg
Foot made of Epoxy painted sheet steel (thickness 12/10ths)
Equipped with feet with jack for adjustment giving complete stability irrespective of the type of floor
Cross-Beam
Multifunctional cross beam - connecting, reinforcement and storage space
Connection between 1 single leg and 1 base unit for a worktop of 2182mm
2 possible positions
Horizontal position - the cross becomes a real shelf that can receive objects heavy and bulky objects
Vertical position, for 1055 height sets, the cross ensures connection between the units and let some space for your roller cabinet
Made of Epoxy painted sheet steel (thickness 15/10ths)
Worktop
Multi-ply beech wood top 40mm thick ensuring resistance and longevity
Stainless steel covered version - covered with a brushed stainless steel plate 304L, 10/10th for increased resistance to shocks and heat
Front edge also covered with stainless steel, finishing off the sides by adding painted metal cheeks
Easy and fast assembly thanks to the pre-drilling of the metal inserts that only remains to be positioned according to the chosen furniture
Load resistance - 1000kg
Shutter Unit
The double unit can be used for storing tools and/or items which are too long and bulky for standard units
Maximum visibility and accessibility thanks to vertical hooking part
Shutters 100% opening fully offers a direct tool access
Rolling shutter with centralised locking, jointed key lock
Fitted with a perforated back panel (6 x 6mm. in steps of 12mm.) for a fixing off tools using the CKS range of hooks
Hook fastening useful dimensions 2057x183x714mm
Additional open storage space of 200mm height for bins, tools
Space provided for a power strip JLS3-POWERBLOCK
Easy and direct fastening on a base unit with worktop or to the wall - No fitting kit needed
Dimension
2182x750x2060mm
MADE TO ORDER DELIVERY APPROX. 8-10 WEEKS
